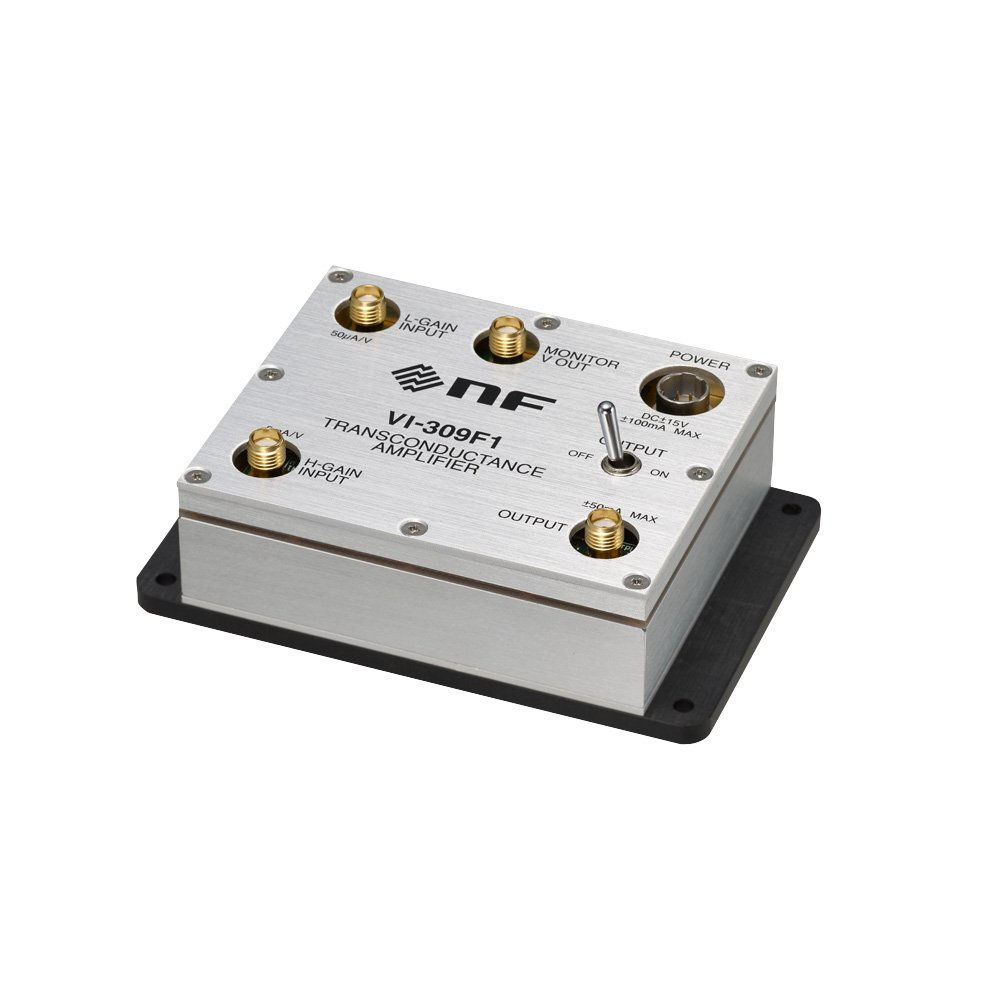

NF Corp. Voltage-Current Converter VI-309F1, Gain 5mA/V
About this item
  • Voltage - Current converter with two input 5mA/V and 50µA/V
  • Output: Max. ±50mA for load impedance 0 to 10Ω
  • Differential characteristics (MOD) can be measured
  • Frequency range : DC to 10kHz
  • Low noise, High stability
  • Product Dimensions ‏ : ‎ 3.15 x 0.98 x 2.56 inches; 7.05 Ounces

Specifications

Absolute maximum ratings
Supply voltage(±Vs) : ±18V, Signal input voltage : ±VS

Input characteristics
Input connector type : SMA, Input impedance : 10kΩ ±3% (100Hz), output turn on key

Output characteristics
Output connector type : SMA, Output current : Min. ±50mA, Output current noise : Max. 1µArms, Output clamp voltage : ±4V,

(Voltage to Current) Amplifier characteristics
Gain : 5mA/V ±3% (H-GAIN INPUT), 50µA/V ±3% (L-GAIN INPUT), Load resistance : 0Ω to 10Ω, Frequency characteristic : DC to 10kHz or more (10Hz, +0.5dB to -3dB)

Output voltage monitor terminal characteristics
Output connector type : SMA, Output impedance : 100Ω ±10%, Output offset voltage : Max. ±1mV, Load resistance : Min. 100kΩ

Others
Power supply voltage range : ±15V ±1V, Quiescent current : Max. ±100mA, Dimensions : 80(W) x 65(D) x 25(H) mm, Approx. 200g
Power Supply : Sold separately. Low noise DC power supply LP5393 and LP5394 maximizes the performance capabilities.

NF Corp. Voltage-Current Converter VI-309F1, Gain 5mA/V

$999.00Price

  • Please allow 1 - 2 weeks lead time for this new product to arrive.

    Comes with a 1 year warranty from the manufacturer.
