A frequency response analyzer measures the gain and phase response characteristics with respect to frequency of the device or system under test, by applying a frequency swept sine wave to it and examining its response signal.
|

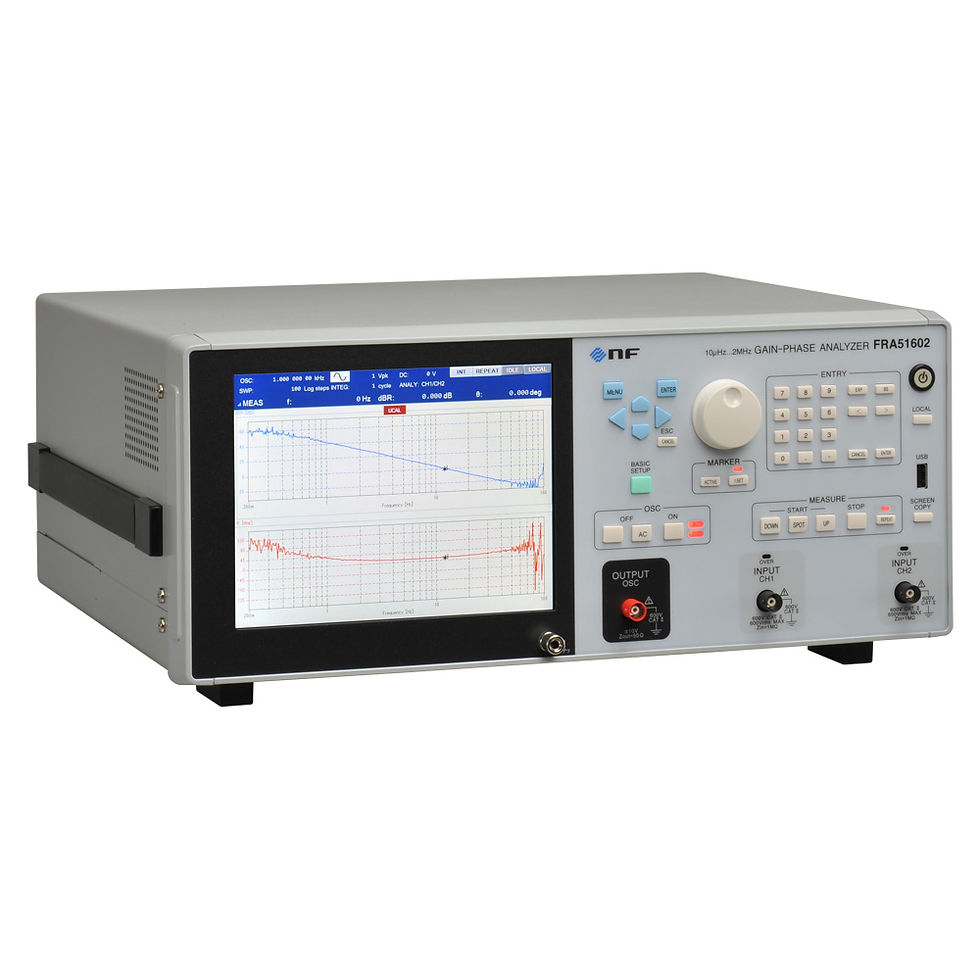

NF Corp FRA51602 Gain-Phase Analyzer
- Measurement Frequency : 10 µHz to 2 MHz
- Measurement Speed : 0.5 ms / point
- Basic Accuracy : Gain: ±0.01dB, Phase: ±0.06°
- Maximum Measurement Voltage : 600 Vrms
- Maximum Input Voltage : 600 V CAT II / 300 V CAT III
- Isolation : 600 V CAT II / 300 V CAT III
- Dynamic Range : 140 dB
Convenient Functions
• Auto Ranging
• Automatic High Density Sweep
• Delay Function
• Amplitude Compression Function
• Sequence Measurement Function
• Marker Search Function
• Group Delay
• Measurement Function for Changing the Frequency at 0°-phasePlease allow 2 - 3 weeks lead time for this new product to arrive.
Comes with a 1 year warranty from the manufacturer.
