NAVION® is a Dewesoft inertial navigation system platform for accurate position, orientation, velocity, and acceleration measurements. Measurements are estimated by a Kalman-based algorithm that combines GNSS positioning with the measurements provided by a MEMS-based inertial measurement unit.

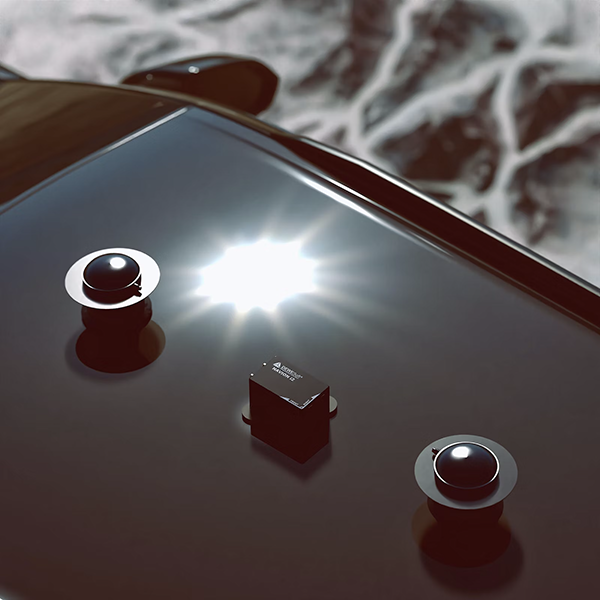

NAVION® is the world's high-performance inertial navigation system of size and weight. It is bundled with a dual antenna for heading and RTK correction configuration which improves positioning accuracy down to 1 cm. Award-winning DewesoftX software included.
NAVION® i2 A high-end inertial navigation system
NAVION® i2 is a great inertial navigation system for an affordable price. It is small, accurate, reliable, and rugged. This small device is all you need for accurate positioning measurements. It is bundled with dual-antennas and RTK support and works with various satellite constellations such as BeiDou B1, B2, and Galileo E1.
NAVION® i2 functionality and features
NAVION® i2 inertial navigation system measures the vehicle’s GNSS position, accelerations, and angular velocities. A Kalman-based algorithm combines GNSS and IMU measurements and provides high accuracy and stability. The built-in IMU sensor has very low drift and helps to maintain position determination even in case of incorrect measurements due to multipath or when the GNSS signal is weak. A GNSS outage of 10s will only cause up to 30cm error.
Measured parameters
NAVION® i2 inertial navigation system provides several output channels:
Latitude, longitude, and altitude.
Orientation (roll, pitch, and heading).
Velocities and angular velocities.
Body accelerations.
Slip angles.
Great connectivity thanks to a connection box
NAVION® i2 inertial navigation system includes a break-out box that includes connection interfaces to PC running DewesoftX data acquisition software or to 3rd-party systems. The break-out box has standard connectors for:
Power supply
Ethernet output
CAN output
RS232 output for RTK and NMEA messages
Synchronization port
IP68 protection in a rugged chassis
The NAVION® i2 inertial navigation system is built-in a sealed compact and robust chassis. NAVION® chassis is certified with IP68 environment protection and is prone to outside elements such as wind, water, mud, and dust. It can be used in practically any weather condition.
1cm accuracy with RTK (Real-time Kinematics)
NAVION® i2 inertial navigation system is compatible with RTK (Real-time Kinematics) correction technology. RTK upgrade improves navigation accuracy down to 1 cm. It supports CMR+, RTCM 2.3, and RTCM 3.x GNSS corrections data.
Applications Navigation for Any Industry
Navion devices provide accurate position, velocity, acceleration, and orientation under the most demanding conditions. Devices are designed to meet the needs of navigational applications across various industries such as automotive, aerospace, railway, marine, agriculture, transportation, industrial equipment, and robotics.
Synchronization With Analog, Digital, and Other Data Sources
Synchronization is the most important aspect of every test and measurement application. Without the right correlation of data, it's impossible to get correct or meaningful results.
DS-IMU1 Compact Inertial Navigation System
If you need a very small and compact inertial navigation system, then we offer DS-IMU1. It still offers great accuracy in a very small form factor. The DS-IMU chassis is only 3 x 4 x 4.5 cm (1.18 x 1.57 x 1.73 inch).
DS-IMU1 still provides a reliable GNSS-aided inertial navigation including AHRS that provides accurate position, velocity, acceleration, and orientation. It offers up to 100 Hz data rate with USB and RS232 data interface. It features PPS output for synchronization using GPS PPS signal.
DS-IMU1 inertial navigation system is a device in a ruggedized chassis with an IP67 degree of environmental protection and MIL-STD-810G rating.
DS-IMU1 applications
Synchronization and timing with Dewesoft data acquisition systems
Simple positioning
Brake test
Acceleration test
Orientation of different objects
Simple vehicle dynamics test
Simple lane change test
Circle drive
Simple ADAS tests
DewesoftX Professional data acquisition software is included for free
NAVION devices include award-winning DewesoftX Professional data acquisition software. DewesoftX offers an easy interface for device configuration and data acquisition via Ethernet, CAN, or NMEA 0183 protocols.
Interactive map visual control
The DewesoftX DAQ software offers real-time 2D and 3D map visual control. The map visual control offers a built-in interactive GPS map via Open Street Maps.
Virtual 3D polygon
DewesoftX data acquisition software features a virtual polygon module for tests involving moving objects. It can visualize moving and static objects in a 3D virtual space. Polygon can also perform geometric measurements between multiple static or movable objects.
Award-Winning Data Acquisition Software Included for Free
Dewesoft data acquisition systems are bundled with award-winning DewesoftX data acquisition software. It is the world's most advanced and easy-to-use data recording and signal processing software. Software and hardware work together like magic. It offers simplicity as well as deep functionality to tackle any test and measurement task.
Dewesoft NAVION® Inertial navigation systems (INS)
Performant/affordable INS
NAVION® i2 is our highest-performing inertial navigation system (INS). It offers a great price-performance ratio and can be used in several navigational measurement applications.
RTK by default
The real-time kinematics (RTK) option on NAVION devices is turned on by default. RTK correction improves positioning accuracy down to 1 cm.
Dual antenna heading
Instant and accurate heading determination. With the two antennas included as standard, you have precise heading information within seconds while standing.
High-performance IMU
NAVION features an integrated MEMS-based IMU with gyroscopes, accelerometers, magnetometers, and pressure sensors. It can also work as a 9-degrees of freedom (DOF) IMU. The IMU-aided navigation reduces errors caused by GNSS outages.
Fast Ethernet connection
The Navion devices offer secure and fast data streaming via Ethernet communication interface to the PC running DewesoftX software.
Rugged IP68 device
NAVION i2 device features a very rugged design with IP68 standard protection. It is resistant to shocks, falls, and even water. It works in extreme environments and temperatures from -40 °C to +71 °C.
Flexible and distributable
Navion offers flexibility. Several NAVION® devices can be distributed and synchronized together over the ethernet connection or Dewesoft DS-WIFI wireless system without requiring additional PCs.
CAN bus output
NAVION® i2 features a CAN bus output port. Once the device is configured and initialized the unit can operate autonomously without connection to DewesoftX software. This makes it ready for integration into 3rd party systems.
PPS output
NAVION® i2 has a PPS synchronization port (via LEMO 4-pin connector) which can be used as the synchronization clock source for all other Dewesoft data acquisition devices.
External inputs
Additional RS232 input for RTK GNSS corrections with support of CMR+, RTCM 2.3, and RTCM 3.x. and a digital input for either odometer or brake pedal switch sensor.
Supports all constellations
NAVION® devices offer support for all GNSS satellite constellations: GPS, GLONASS, BeiDou, Galileo, AltBOC, E5a, E5b NavlC (IRNSS).
Dewesoft flexibility
Connect additional analog sensors (strain gauge, force, temperature, CAN bus, GPS, and countless other data sources) and measure additional parameters simultaneously, with all data perfectly synchronized.
Dewesoft quality and 7-year warranty
Enjoy our industry-leading 7-year warranty. Our data acquisition systems are made in Europe, utilizing only the highest build quality standards. We offer free and customer-focused technical support. Your investment into the Dewesoft solutions is protected for years ahead.
Software included
Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.
