PPA5500-TE Transformer Edition Power Analyzer



The Worlds Most Accurate Power Transformer Analyzer*



The PPA5500-TE is a high accuracy transformer power analyzer compliant to relevant testing within IEC60076-1, dedicated to the transformer industry. The PPA5500-TE builds upon years of knowledge and experience within the transformer industry bringing a power analyzer with exceptional performance. Transformer analysis requires very specific performance requirements including exceptional phase angle accuracy and repeatability. The PPA5500-TE provides market leading low power factor analysis, supplied with UKAS ISO17025 certification.



Featuring the industry renowned planar shunt technology (A shunt design topology developed by N4L) and FPGA based real time no gap analysis techniques, the PPA5500 is able to provide ground breaking low power factor analysis performance.



*According to N4L market research, April 2020



ISO17025 Calibration and Verification



Every PPA5500-TE is supplied with a comprehensive UKAS ISO17025 certificate, featuring power calibration at a range of power factors from unity to 0.01, as well as a UKAS Traceable calibration certificate up to 2MHz. N4L have developed a number of bespoke power calibrators in order to verify the accuracy of every power analyzer supplied over its entire frequency range, this is surprisingly uncommon within the instrumentation industry. Furthermore, development of an ISO17025 (UKAS) accredited Closed Loop Calorimeter in partnership with Oxford University (UK) has verified the performance of the N4L custom designed power calibration rigs with a very low uncertainty level, providing absolute confidence that the wide band performance of all N4L power analyzers is market leading.

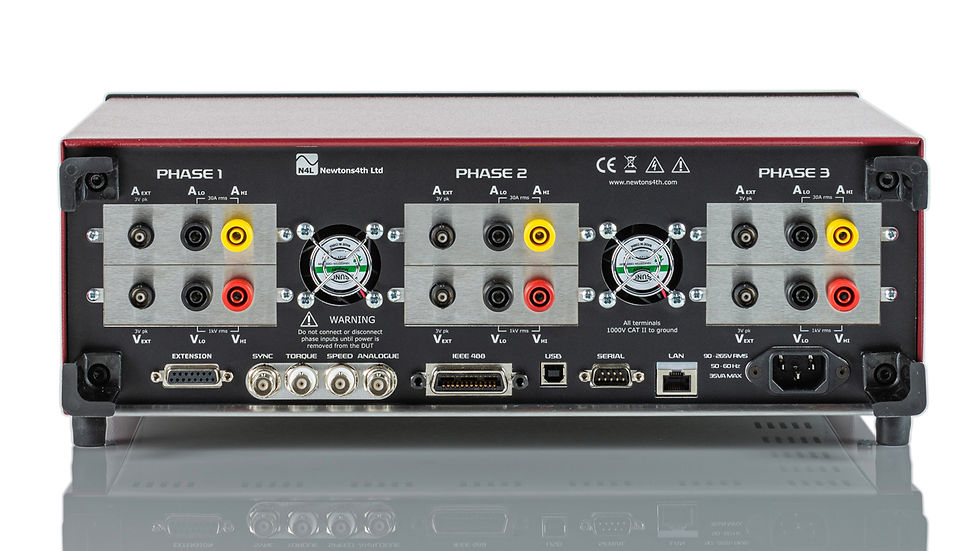

N4L PPA5500-TE Transformer Edition Power Analyzer DC, 10mHz - 2MHz

  • IEC Compliance
    IEC60076-1 Compliant

    Voltage and Current Input Accuracy
    0.01%rdg + 0.038%rng

    45-65Hz Phase Accuracy
    0.003deg

    UKAS ISO17025
    All accuracies certified to ISO17025

    45-65Hz Power Accuracy (Watts) Total % error, PF 1 ~ 0.5
    0.15%

    45-65Hz Power Accuracy (Watts) Total % error, PF 0.5 ~ 0.05
    0.23%

    45-65Hz Power Accuracy (Watts) Total % error, PF 0.05 ~ 0.02
    0.52%

    45-65Hz Power Accuracy (Watts) Total % error, PF 0.02 ~ 0.01
    0.55%

    Measurement Bandwidth
    DC, 10mHz ~ 2MHz

    Calibration Interval
    24 Months

    Communication Ports
    RS232, LAN, GPIB or USB

    Warranty
    3 Years

  • Please allow 6-8 weeks lead time for this new product to arrive.

    Contact us at info@stratatek.com for data sheets or more information about this product.
