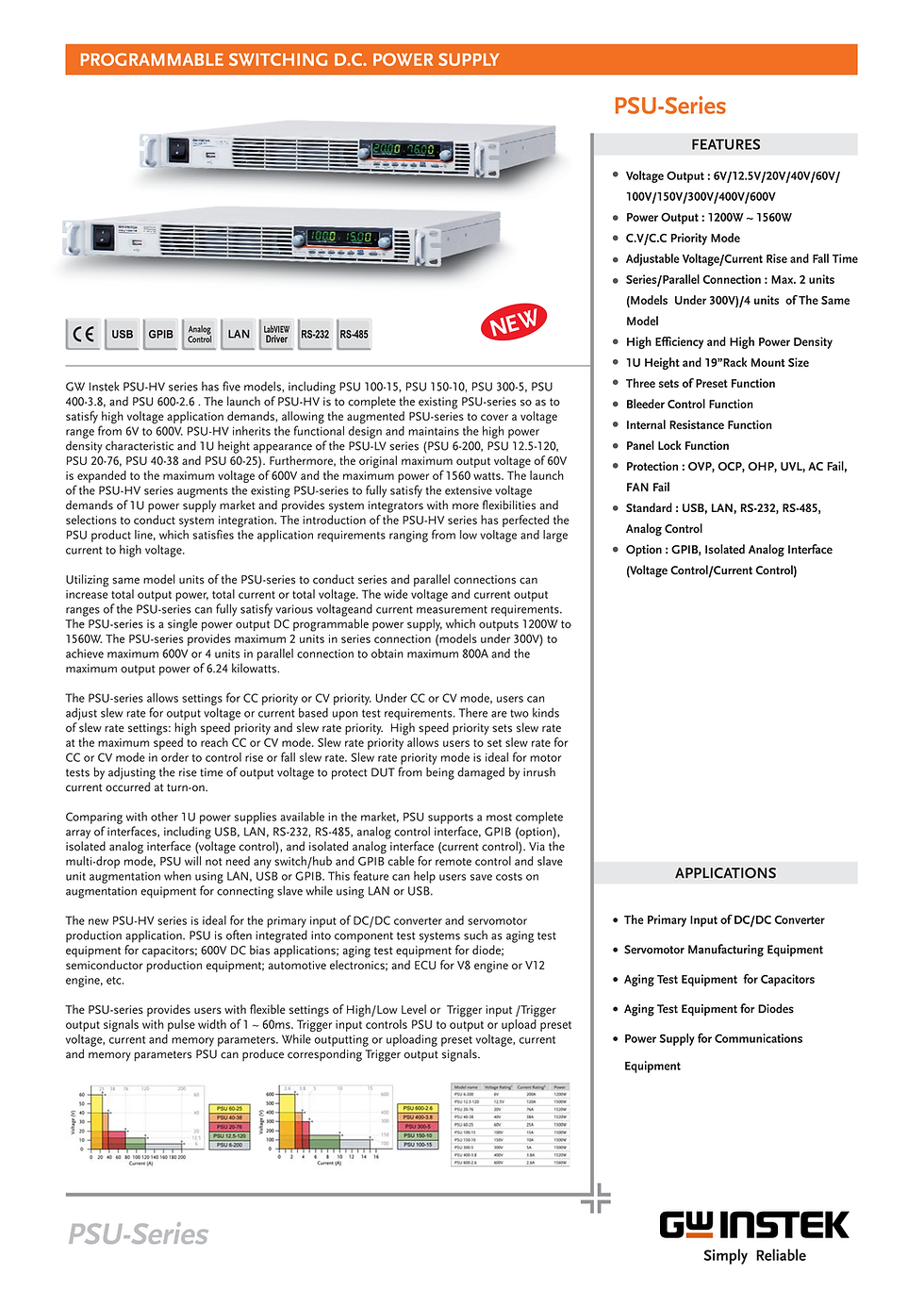

GW Instek PSU Series Programmable Switching DC Power Supply
The PSU-Series is a single output programmable switching DC power supply covering a power range up to 1560W. This Series of products include ten models with the combination from 6V to 600V rated voltages.

Utilizing same model units of the PSU-series to conduct series and parallel connections can increase total output power, total current or total voltage. The wide voltage and current output ranges of the PSU-series can fully satisfy various voltage and current measurement requirements.

The PSU-series provides maximum 2 units in series connection (models under 300V) to achieve maximum 600V or 4 units in parallel connection to obtain maximum 800A and the maximum output power of 6.24 kilowatts.

The PSU series allows settings for CC priority or CV priority. Under CC or CV mode, users can adjust slew rate for output voltage or current based upon test requirements. There are two kinds of slew rate settings: high speed priority and slew rate priority. High speed priority sets slew rate at the maximum speed to reach CC or CV mode. Slew rate priority allows users to set slew rate for CC or CV mode in order to control rise or fall slew rate. Slew rate priority mode is ideal for motor tests by adjusting the rise time of output voltage to protect DUT from being damaged by inrush current occurred at turn-on.

Available Models:
PSU 6-200 6V 200A1200W
PSU 8-180 8V 180A1440W
 PSU 12.5-120 12.5V 120A 1500W
PSU 15-100  15V 100A 1500W
 PSU 20-76 20V 76A 1520W
PSU 30-50 30V 50A 1500W
PSU 40-38 40V 38A 1520W
 PSU 50-30 50V 30A 1500W
 PSU 60-25 60V 25A 1500W
 PSU 80-19 80V 19A 1520W
PSU 100-15 100V 15A 1500W
PSU 150-10 150V 10A 1500W
PSU 300-5 300V  5A 1500W
PSU 400-3.8 400V 3.8A 1520W
PSU 600-2.6 600V 2.6A 1560W

GW Instek PSU Series Programmable Switching DC Power Supply

$2,189.00Price
    • Voltage Rating:6V/12.5V/20V/40V/60V/100V/150V/300V/400V/600V
    • Output Power Rating: 1200W~1560W
    • C.V / C.C Priority
    • Adjustable voltage/current rise and fall time
    • Series/ Parallel Connection: Max. 2 Units(Models Under 300V)/ 4 Units of The Same Model
    • High Efficiency and High Power Density
    • 1U Height and 19”Rack Mount Size
    • Standard Interface: USB, LAN, RS-232, RS-485, Analog Control
    • Optional Interface: GPIB, Isolated Analog Interface(Voltage Control/ Current Control)
