AFJ VVL 1530 Van Veen Loop Antenna 9kHz - 30MHz Large Loop Antenna System LLAS
VVL 1530 is a calibrated 2-metre large Van Veen Loop antenna designed and manufactured to comply with CISPR 15 and CISPR 16-1-4 requirements.

The current probe around the inner conductor of the coaxial antenna-cable has a sensitivity of 1V/A over the frequency range from 9kHz to 30MHz, so no antenna factor is needed during measurement. The calibrated frequency range is 9kHz to 30MHz and each antenna can be used with any CISPR 16-1-1 EMI receiver or spectrum analyzer. Optional available accessories are the calibration kit and the EUT support.

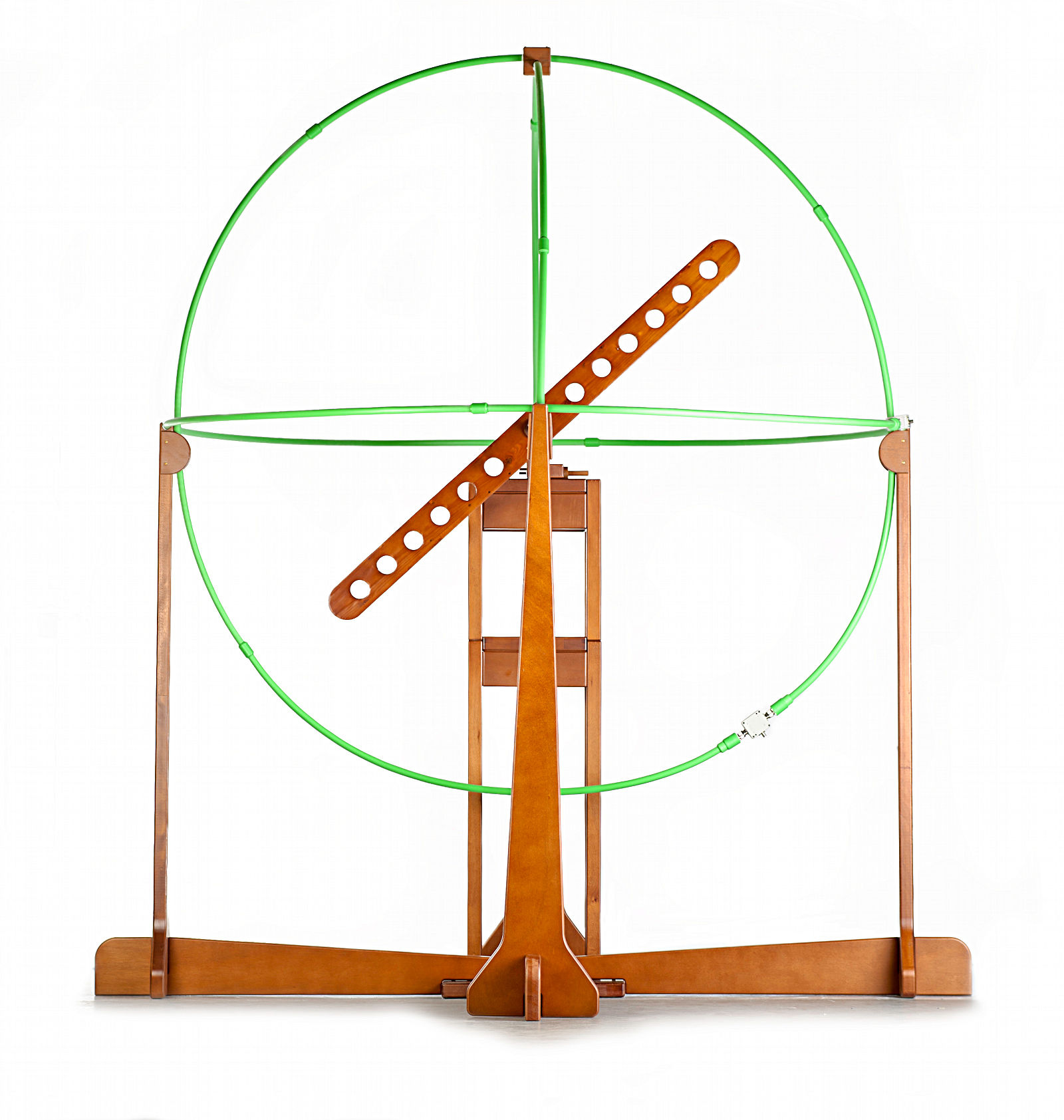

VVL 1530 is a complete 3-axis antenna with a manual switching unit to select each loop in turn. The loops are 2m in diameter with the lowest point 0.5m above ground and are fitted with specially designed current transducers in fully screened housings. Ambient interference is strongly suppressed in open area measurements. VVL 1530 is designed to be disassembled for easy storage. Assembly and disassembly is very fast, no screws necessary.

Signals from the loop antenna are analyzed by the FFT 3010 & 3018 and R3030 EMI receivers.

AFJ VVL 1530 Van Veen Loop Antenna 9kHz - 30MHz Large Loop Antenna System LLAS

  • Please contact us for a quote or more information about this product.
    info@stratatek.com or (905) 406 - 0100

    • Design: Fully compliant to CISPR 16-1-4 standard
    • Frequency Range: 9kHz÷30MHz
    • Loops: Triple independent 2m diameter loops switchable among X, Y, Z
    • Loop selector: Manual switch unit
    • Output: 50W
    • Connector: N Female
    • Operating temperature: 0 to 45°C
    • Storage temperature: -20° to 70°C
    • Size (W x H x D) 2,1 x 2,6 x 2,1m
