Biconical EMC Antenna with much higher gain especially in the low frequency range to meet even most restrictive EMC standards like EN55011, EN55022 etc..
The practical EMC measurement antennas of the BicoLOG® Antenna-Series are the perfect tool for performing economic and still highly accurate measurements in the lower frequency range up to 20MHz.
These radial-isotropic-antenna are already delivered with typical, extensive calibration data in order to facilitate calibration for various measurement systems. The high-quality measurement-antennas of the BicoLOG® series are very light-weight and as such perfectly suited for mobile application, as well as usage in the laboratory.
Every BicoLOG® E Antenna has a high-grade SMA connector.
Devices, like Spectrum Analyzer, with N connector can be used with our optional adapter.
Highlights:
• Special EMC version with optimized antenna gain
• Only a single broadband antenna for the complete frequency range from 30 MHz up to 1 GHz
• Optimal for usage with spectrum analysers for EMC measurement
• Suitable for mobile use
• Robust design
• Small weight and dimensions
• Made in Germany
| More Information | |
| Country of Manufacture | Germany |
|---|---|
| Dimensions | 540x225x225mm (L/W/D) |
| Antenna factor | 17-31 dB/m |
| Design | Biconical |
| Frequency range | 30MHz - 1GHz |
| Guarantee | 2 years |
| Weight | 1150 g |
| Gain (typ.) | -31 dBi to 1 dBi |
| RF connection | SMA socket (18GHz) or N socket using an adapter |
| Calibration points | 194 (5 MHz steps) |

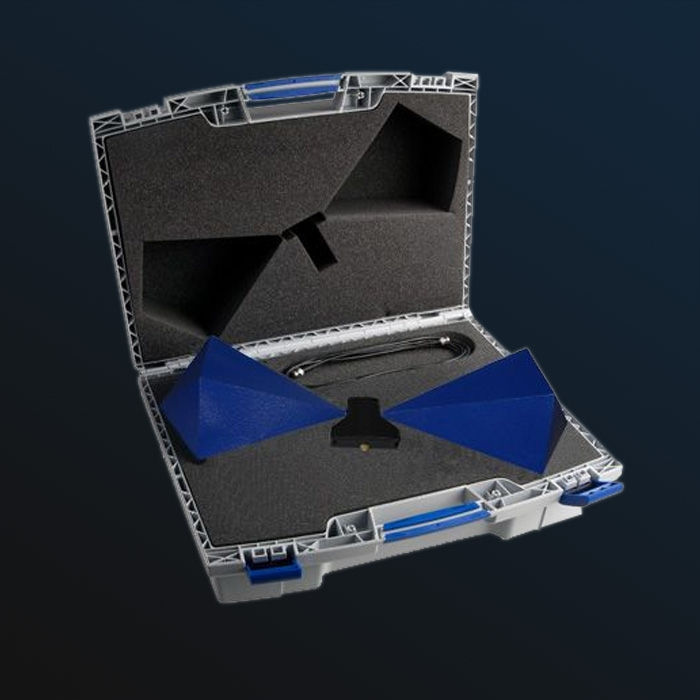

| Included with delivery | BicoLOG 30100E EMC measurement antenna, typical calibration datas, transportcase |
| Max. transmission power | 1W (30 dBm or 0 dbW) |
| Nominal impedance | 50 Ohms |
| Tripod connection | 1/4" |
| Series antennas | BicoLOG E |
Aaronia BicoLOG 30100E Biconical EMC Antenna 30MHz-1GHz
Frequency Range 30 MHz - 1 GHz Design Biconical Active No Gain (max.) 0 dBi Connector SMA (f) Mount 1/4" Thread Dimensions 540x225x225 mm Weight 1150 g
